Enrollment

A new iron-proxy joins the control plane by running a one-time init command with a bootstrap token. The proxy registers itself, claims a set of tags, pulls its initial configuration, and begins reporting audit events. After enrollment, the proxy stores a long-lived credential on disk and does not need the bootstrap token again.

Enroll a Proxy

Create a Bootstrap Key

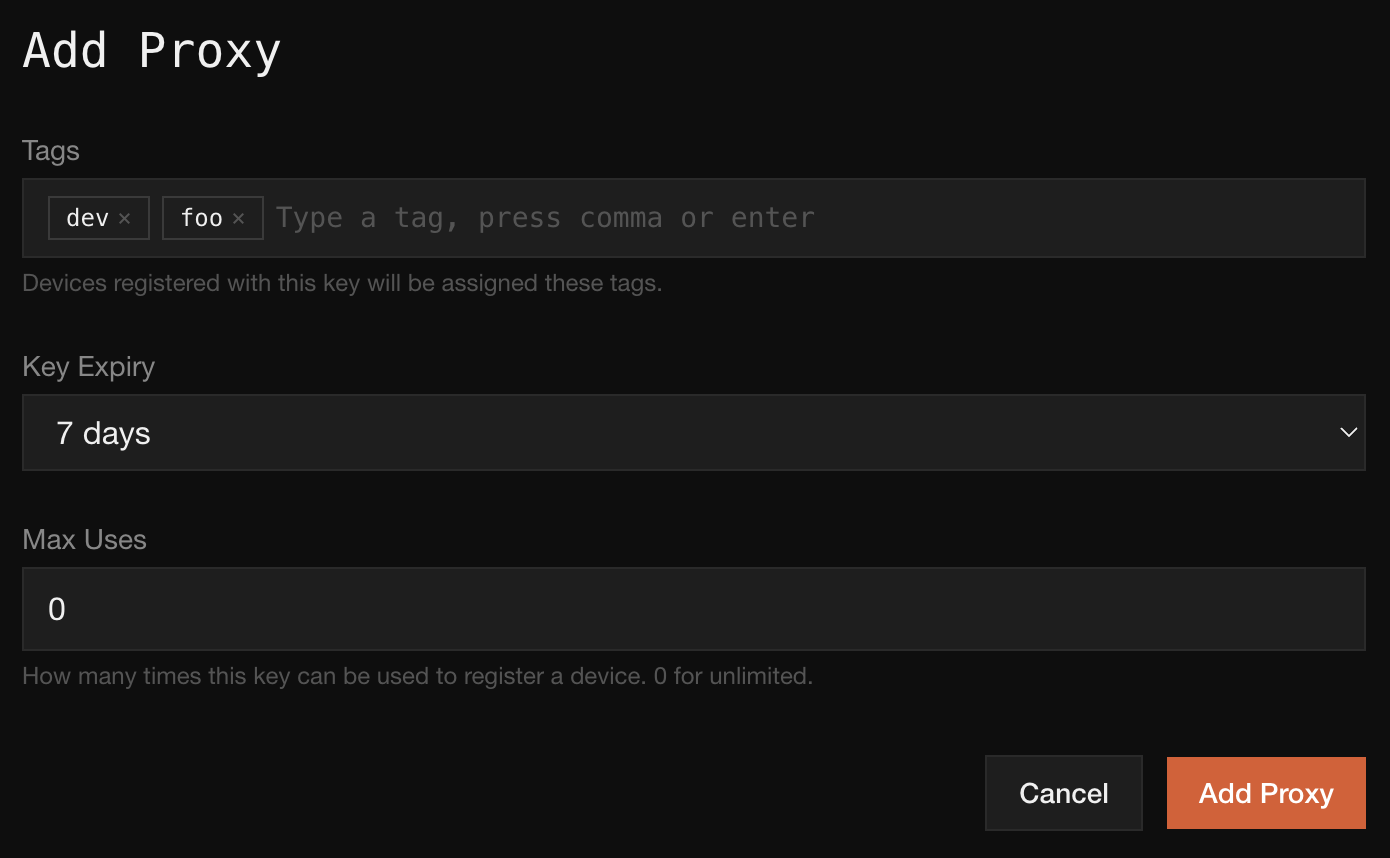

In the control plane UI, open the Proxies tab and click Add Proxy.

Fill in:

• Tags. Labels that will be assigned to any proxy registered with this key. Type a tag and press comma or enter to add it.
• Key Expiry. How long the key can be redeemed before it is no longer valid.
• Max Uses. How many proxies this key can register. 0 means unlimited.

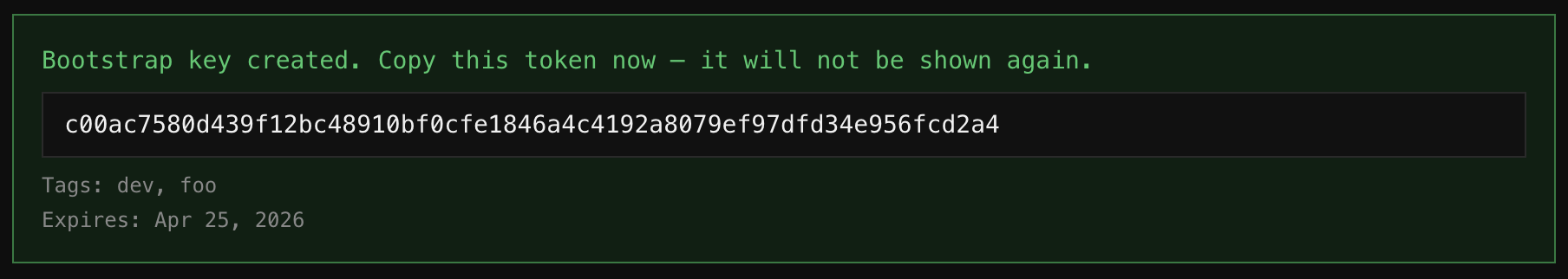

Click Add Proxy. The control plane displays the bootstrap token once.

Copy the token immediately. It will not be shown again.

Run init on the Host

On the machine where iron-proxy will run, execute:

sudo ./iron-proxy init \
  -bootstrap-token 1a46ef8a2f34650f6b3fba5f20990dde0910060d9faab3dfba9ab168cf4f3f43 \
  -tags dev,foo

The init subcommand exchanges the bootstrap token for a long-lived proxy credential, registers the proxy with the control plane, claims the requested tags, pulls the initial policy, installs the iron-proxy systemd services, and starts the iron-proxy service. When it returns, the proxy is already running and connected to the control plane.

sudo is required because the state directory, iptables rules, and systemd units are all system-wide.

Verify It Registered

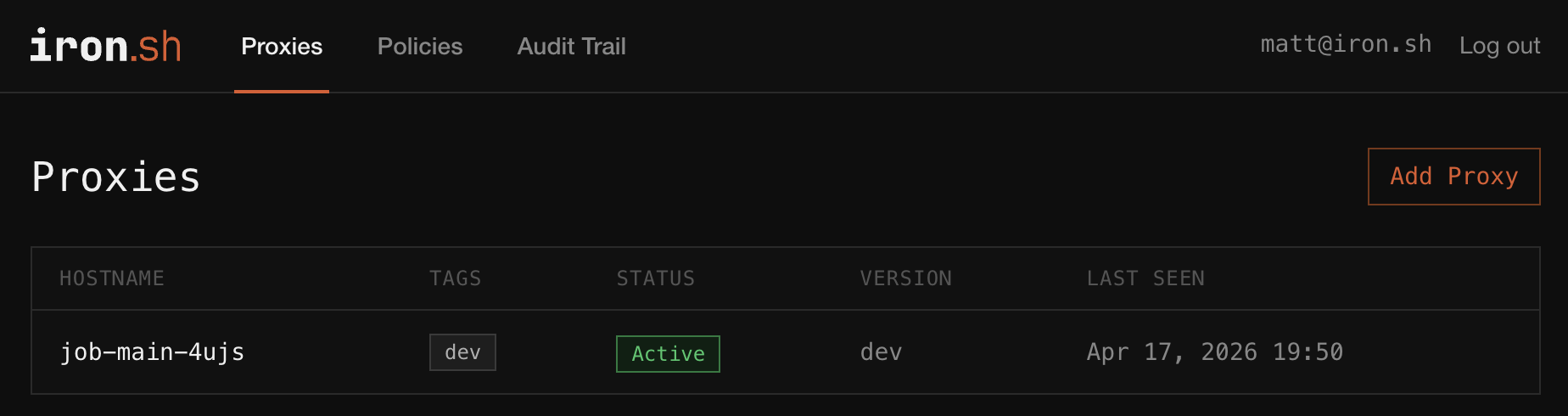

Back in the Proxies tab, the new proxy appears in the list with its tags and Active status.

Customizing the Generated Config

init writes a config file to the proxy’s state directory. It is preconfigured to connect to the control plane and apply the policy you just pulled, and will work as-is for most deployments.

Anything in the standard iron-proxy configuration can be edited directly in the file: listen ports, upstream resolvers, log format, extra transforms. After editing, restart the service to pick up the changes:

sudo systemctl restart iron-proxy

Control-plane-managed fields (policy, secret mappings, tags) are refreshed from the control plane on every reconnect, so local edits to those fields will be overwritten. Edit them in the control plane UI instead.

Tags

Tags are colon-separated labels that identify a proxy and its workload. They can be bare strings like dev or namespaced like env:prod. Every audit event is indexed by the proxy’s tags, so fleet-wide queries like “show every request from env:prod service:checkout” are cheap.

Pass tags as a comma-separated list:

-tags env:prod,service:checkout,region:us-east-1

Changing a proxy’s tags after enrollment is not yet exposed in the UI or CLI. For now, re-enroll the proxy with a fresh bootstrap token to assign a new tag set.

Tag Claims Are Bounded by the Key

The -tags list on the host must be a subset of the tags configured on the bootstrap key. Claiming a tag that was not on the key fails enrollment, and the server enforces this regardless of what the host requests.

This lets you issue narrowly scoped keys per environment. A key whose tag set is dev, foo cannot be abused to enroll a proxy claiming prod, no matter what the host passes on the command line.

Bootstrap Tokens

Bootstrap tokens are short-lived credentials that authorize enrollment. They exist only for the handshake. Once the proxy has its long-lived credential, the token is discarded.

Max Uses controls how many proxies a single token can register:

• 1 is the tightest setting: the token can enroll exactly one proxy, then is dead. Prefer this for provisioning flows that hand out a token per host.
• A small integer fits short-lived autoscaling groups where a handful of proxies will come up from the same bootstrap.
• 0 (unlimited) fits base images or long-lived pools. Pair with a short Key Expiry so the blast radius of a leaked token stays bounded.

Troubleshooting

Token expired. The key’s Key Expiry window has passed. Generate a new bootstrap key and retry.

Tag not in allowed set. The proxy requested a tag that was not on the bootstrap key. Check the key’s tag set in the control plane UI.

Max uses exceeded. The bootstrap key has already been redeemed Max Uses times. Generate a new key or increase Max Uses on the next one.
